GeoFanDrain^® BC

GeoFanDrain® BC (plastic blind drain, also known as a French drain, rubble drain, blind ditch, or under drain), is a subsurface drainage system composed of a thermoplastic resin core and filtering cloth.

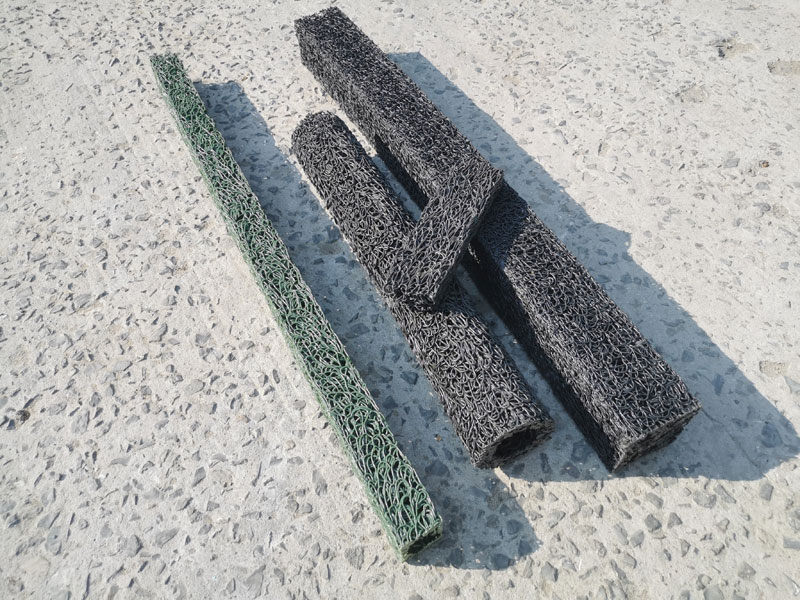

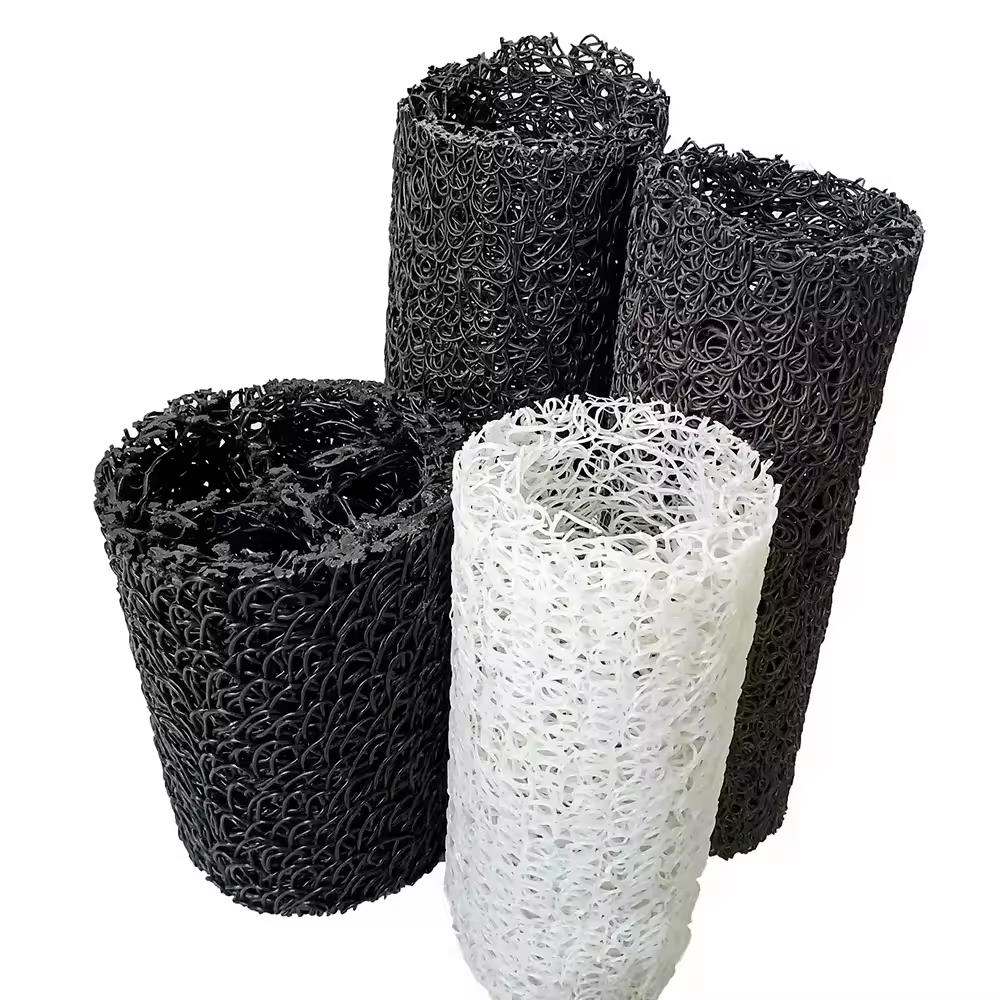

The core is formed by extruding and welding plastic strips into a three-dimensional network structure, available in various shapes such as rectangular or round with holes or hollow centers.
Compared to traditional blind ditches, it offers superior drainage, pressure resistance, light weight, and flexibility, reducing labor intensity and improving efficiency. It is widely used in highway subgrades, retaining walls, landfills, roof gardens, foundations, and underground irrigation.

Brand GeoFanDrain^® BC
Product origin China
Delivery time 7-14 Days
Supply capacity 40′ HQ/ 7 Days

GET A FREE CONSULTATION DOWNLOAD

Product Details

GeoFanDrain^® BC

GeoFanDrain® BC, también conocido como dren ciego de plástico (o dren francés, dren de grava, zanja ciega o drenaje inferior), es un sistema moderno de drenaje subterráneo diseñado para ofrecer un rendimiento superior frente a las soluciones tradicionales. Este sistema está compuesto por un núcleo estructural de resina termoplástica y una tela filtrante, lo que garantiza durabilidad y eficiencia. Sus características destacadas incluyen:

Estructura tridimensional de alto rendimiento: El núcleo se fabrica mediante la extrusión y soldadura de tiras plásticas, formando una red en 3D con formas rectangulares o redondas, con centros huecos o perforaciones que optimizan el flujo del agua.
Alta capacidad de drenaje y resistencia a la presión: Supera a los drenajes convencionales en velocidad de evacuación del agua y resistencia mecánica, ideal para proyectos con altas exigencias técnicas.
Ligero y flexible: Su peso reducido y estructura adaptable facilitan el transporte, la instalación y el trabajo en espacios complejos, reduciendo la intensidad de mano de obra.
Protección contra obstrucciones: La tela filtrante impide el paso de partículas finas, asegurando un funcionamiento continuo y sin bloqueos.
Amplia gama de aplicaciones: Perfecto para subbases de carreteras, muros de contención, vertederos, jardines en azoteas, cimentaciones y sistemas de riego subterráneo.

GeoFanDrain® BC representa una solución integral y avanzada para la gestión del agua subterránea, combinando innovación, eficiencia y sostenibilidad en cada proyecto.

Could be manufactured according to your inquiry, MINIMUM ORDER QUANTITY: 20’ft Container

Mechanical Properties

Properties	Properties	Unit	BC R7035	BC R1235	BC R1550	BC C60	BC C80	BC C100	BC C120	BC C150	BC C200
Compressive Strength Compression Rate	5%	KPa	98	73	46	82	77	67	52	47	47
Compressive Strength Compression Rate	10%	KPa	171	106	75	162	142	112	80	72	70
Compressive Strength Compression Rate	15%	KPa	174	142	118	202	182	162	102	92	90
Compressive Strength Compression Rate	20%	KPa	229	170	151	252	232	222	127	122	112
Calculating Formula		m³/h	0.5737 Q=15.84H L=0.5	0.6042 Q=6.12H L=0.5	0.888 Q=10.98H L=0.4	0.5371 Q=6.12H L=0.5	0.531 Q=19.8H L=0.5	0.5303 Q=19.44H L=0.5	0.5333 Q=31.32H L=0.5	0.4686 Q=56.88H L=0.5	0.4726 Q=86.4H L=0.5
Discharge Capacity Hydraulic Slope	i-0.1	m³/h	1.001	2.84	0.629	1.224	4.03	4.00	4.338	13.945	17.92
Discharge Capacity Hydraulic Slope	i-0.05	m³/h	0.659	1.913	0.415	0.844	2.792	2.749	4.38	10.098	12.453
Discharge Capacity Hydraulic Slope	i-0.01	m³/h	0.249	0.761	0.099	0.356	1.188	1.174	1.856	4.75	5.349
Discharge Capacity Hydraulic Slope	i-0.005	m³/h	0.164	0.551	0.054	0.245	0.822	0.811	1.283	3.433	3.717
Discharge Capacity Hydraulic Slope	i-0.001	m³/h	0.062	0.1203	0.013	0.103	0.349	0.345	0.543	1.615	1.596
Shape	Shape		Rectangular	Rectangular	Rectangular	Circular	Circular	Circular	Circular	Circular	Circular
Exterior Size (w×h)	Exterior Size (w×h)	mm	70×35	120×35	150×50	ф60	ф80	ф100	ф120	ф150	ф200
Hollow Size (w×h)	Hollow Size (w×h)	mm	40×10	40×10×2	50×25×2	ф25	ф45	ф55	ф75	ф80	ф130
Mass Per Unit Length	Mass Per Unit Length	g/m	367	600	992	452	813	1145	1520	1520	3010
Porosity	Porosity	%	82	88	87	82	82	85	85	88	89

The Applications of GeoFanDrain^® BC

GeoFanDrain® BC is a specialized geocomposite drainage product designed for efficient vertical and horizontal drainage in civil and geotechnical engineering projects. Its structure typically combines a polymer drainage core with geotextile layers, allowing it to provide both filtration and rapid water discharge. Below are its main applications:

Retaining Walls and Bridge Abutments
GeoFanDrain® BC is installed behind retaining structures to relieve hydrostatic pressure by channeling water away efficiently, reducing the risk of wall failure.
Tunnels and Underground Structures
It helps manage groundwater by creating drainage pathways around tunnels and basements, ensuring long-term structural integrity.
Landfills and Waste Containment Systems
Used to control leachate and gas flow in solid waste facilities by providing a reliable drainage layer between soil and liner systems.
Green Roofs and Planters
Its drainage capability helps remove excess water while its filtration function prevents soil from clogging the system—promoting healthy vegetation growth.
Highway and Railway Embankments
GeoFanDrain® BC provides subgrade drainage to prevent water accumulation under pavement, improving road stability and extending service life

Geofantex Geosynthetics have to make a series of guarantee for our products both plant processing and selling out to our customers. The selling to you is the first step, the service and guarantee is our task. Geofantex Geosynthetics have an ISO Certificate to guarantee the raw material, the product processing, and the end product. From receiving your order to replacement and installation of the products, we have solved the problems in time if you need, whatever the quality and technics guideline or suggestions. Our company has been committed to supplying high-quality products with reasonable price and delivery in time.

GEOFANTEX has an on-site manufacturing Quality Assurance Laboratory at the factory. GEOFANTEX maintains a high level of quality and up-to-the-minute results on finished products through a fully equipped, well-staffed, dedicated laboratory existing in each of the manufacturing facilities. Each facility follows the same guidelines for evaluating the quality of GEOFANTEX products and is capable of adapting to market-driven requirements.
A. Objective
The objective of the GEOFANTEX Quality Assurance program is to define the implementation of basic manufacturing quality assurance (MQA) procedures necessary to ensure the consistent production of quality products supplied to the geosynthetic market. Note that at this time, these procedures are limited to GeoFanDrain® BC.
B. Scope
In order to achieve GEOFANTEX’s stated purpose, a rigorous set of minimum standards and an effective test program to assure compliance have been established. These procedures and requirements are frequently reviewed and adjusted to assure compliance with current market demands and/or predetermined project specifications. These procedures assure that raw materials and process parameters are controlled to provide products complying with GEOFANTEX’s pre-defined minimum characteristics.

GeoFanPipe® FP PRODUCT IDENTIFICATION AND DOCUMENTATION

A. Roll Numbering

Each roll ofDrainage Board B is assigned a unique roll number. The Quality Assurance Laboratory maintains records documenting the raw materials and resulting product quality information.

B. Approval Procedure

Results for each tested roll of the product are checked against both GEOFANTEX China standard and customer specifications for compliance. The Quality Assurance Laboratory approves those materials that meet these requirements for shipment.

C. Non-Conformance

Material that does not meet GEOFANTEX minimum standards is given a roll number but is rejected and not placed into inventory. The material is identified as scrap and will not be utilized. Material that meets GEOFANTEX minimum standards but does not meet a stricter customer specification is not allocated to that customer but is placed into inventory as GEOFANTEX standard material.

D. Documentation

Individual Quality Assurance Certificates are generated and supplied for each roll of GeoFanDrain® BC product to include all relevant quality assurance information about the material(s).

Geofantex Geosynthetics have a series of package and delivery service working procedures. Geofantex Geosynthetics have supplied thousands of containers to Latin America, North America, Southeast Asia, and developed countries, and Africa within the past ten years. We provide the package of products with the rolls, pots, bags, sheets, or your requirement in orders. Our company has been committed to supplying high-quality products with reasonable price and delivery in time. Delivery one 40’HQ within 7 – 10 days. And we have an obligation in increasing loading quantity and make you save the freight costs maximumly. We supply the products by plane, by sea and land carriage to any regions or any countries of the worldwide, even the door-to-door service.

	SEPARATION	REINFORCEMENT	FILTRATION	DRAINAGE	WATERPROOF	PREVENTION	POLLUTION PREVENTION	PROTECTION	CONSOLIDATE
GEOTEXTILE	√	√	√	√				√	√
GEOMEMBRANE	√				√		√
GEOGRID		√							√
GEONET				√
GEOTUBE				√
GEOCELL						√			√
GCL					√		√
GEOCOMPOSITE	√	√	√	√	√	√	√
GEOCONCRETE BLANKET			√			√		√
Drainage Board B		√	√	√					√
Storage and Drainage Board		√	√	√					√
Grass Paver			√	√	√	√	√	√	√
Macmat	√	√	√			√	√	√	√
GeoFanTex®GD 2L	√		√	√		√	√	√
GeoFanPipe® FP				√
GeoFanDrain® BC			√	√				√

Geosynthetic material type and function comparison table

GeoFanDrain^® BC Installation Guide
