Geotextiles for Waterproof Lining and Filtration in Drainage Systems and Construction Applications

Geotextiles for Waterproof Lining and Filtration are widely used in civil engineering, environmental protection, and infrastructure projects to improve drainage, soil stability, and waterproof system performance. Although geotextiles are not waterproof by themselves, they play a crucial supporting role by protecting waterproof membranes, filtering soil particles, and managing water movement. Their excellent permeability and durability make them a cost-effective solution for long-term construction and environmental applications.

What Are Geotextiles for Waterproof Lining and Filtration?

Geotextiles for Waterproof Lining and Filtration are permeable synthetic fabrics designed to separate, filter, reinforce, protect, and drain soil in construction projects. Manufactured from polypropylene or polyester fibers, they are available in woven and non-woven forms to meet different engineering requirements.

Unlike waterproof membranes, geotextiles allow water to pass through while preventing soil migration. This combination of permeability and filtration helps maintain drainage efficiency, reduce erosion, and improve the stability of surrounding structures.

Geotextiles for Waterproof Lining and Filtration in drainage protection systems

These materials help maintain efficient water flow around waterproof barriers by filtering soil particles and preventing drainage layers from becoming blocked.

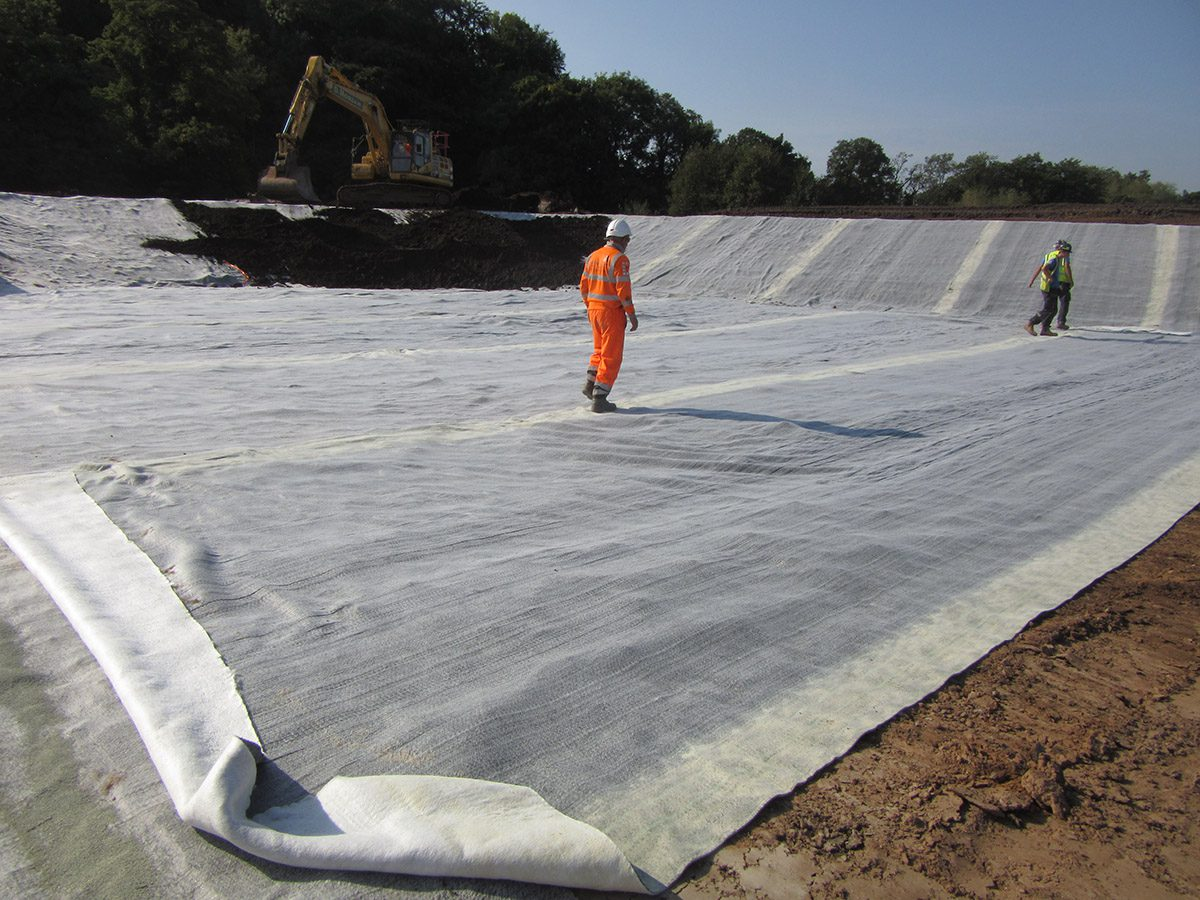

Geotextiles for Waterproof Lining and Filtration for geomembrane protection

When installed with geomembranes, geotextiles provide a protective layer that reduces puncture risks and improves the durability of waterproof lining systems.

As a result, they are widely incorporated into waterproof structures to enhance performance rather than replace waterproof barriers.

Do Geotextiles for Waterproof Lining and Filtration Stop Water?

• No, geotextile fabric does not stop water; it is designed to be permeable.
• Non-woven geotextiles allow water to pass through while filtering soil particles, making them ideal for drainage.
• Woven geotextiles have lower permeability but still permit some water flow, primarily for stabilization applications.
• The key function of geotextile fabric is to manage water movement while maintaining soil structure and preventing erosion.

Why is geotextile used in waterproofing?

Geotextile is used in waterproofing primarily as a protective and supportive layer rather than as a water barrier itself. Its main roles include:

• Protection of waterproof membranes: Geotextiles shield geomembranes or other waterproof layers from punctures, tears, and damage during installation and service life, preserving the integrity of the waterproofing system.
• Stress distribution: They help evenly distribute loads and mechanical stresses, reducing the risk of localized pressure that could compromise the waterproof layer.
• Water flow management: Geotextiles guide and filter water movement near waterproofed areas, preventing soil erosion and maintaining structural stability.

In essence, geotextiles enhance the effectiveness and durability of waterproofing systems by acting as a safeguard, load distributor, and water management facilitator, even though they do not block water themselves.

Can Water Pass Through Non-Woven Geotextile?

Yes. Non-woven geotextiles are specifically engineered to allow continuous water flow while preventing soil migration.

Their porous structure provides excellent permeability, making them ideal for long-term drainage and filtration applications. Common uses include:

• French drains
• Retaining wall drainage
• Road and railway subgrades
• Pond and reservoir lining
• Landfill drainage systems
• Tunnel waterproofing
• Foundation drainage
• Erosion control projects

When combined with geomembranes, non-woven geotextiles protect waterproof liners from puncture while maintaining efficient drainage beneath the membrane. This combination delivers reliable waterproof system performance and long-term structural durability.

Geotextiles, particularly in the form of non-woven fabrics, are a cornerstone in modern construction and environmental applications due to their versatile and durable nature. While not waterproof by themselves, geotextiles contribute significantly to waterproofing solutions by protecting barrier materials, facilitating drainage, and ensuring stability in soil structures. Their ability to filter and channel water makes them indispensable in the design and implementation of effective and lasting waterproof lining systems.
